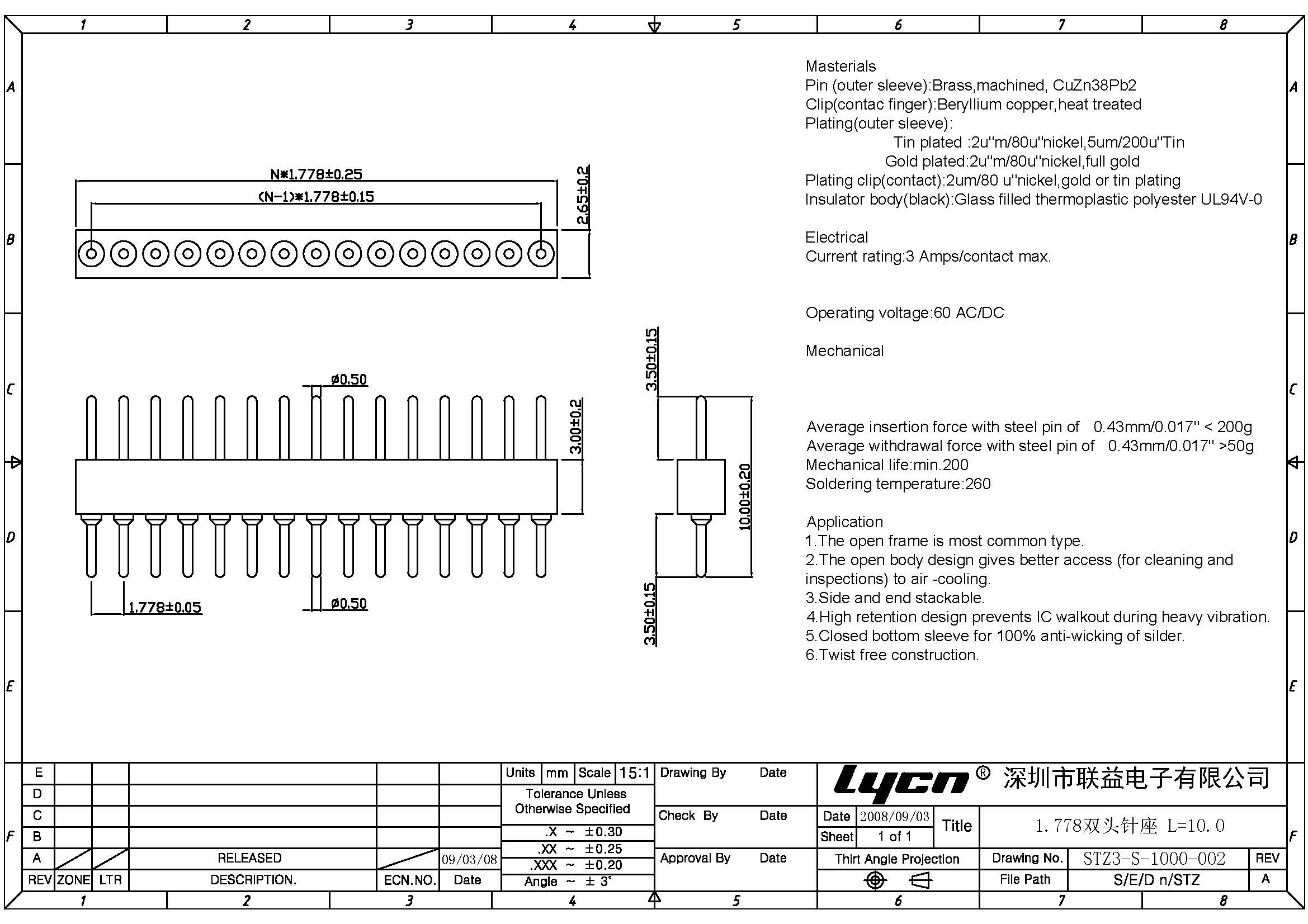

1.778圆孔排针座；直插

SPECIFICATIONS(技术参数):

Insulator(绝缘体): Black glass filled polyester PBT-GF30-FR

                            UL 94V-O

Sleeve/Contact(外壳/接触件)：Brass CuZn36Pb3(C36000)

Clip /4 finger(爪子)：Beryllium copper(C17200)

Accepted pinΦ（适配公针）：0.40 to 0.56mm

Forces(力测试)：（polished steel gauge Φ0.43mm）

--lnsertion(插入力)    2N typ

--Withdrawal(拔出力)   1N typ

Mechanical life(机械寿命)：min 500 cycles

Rated current(额定电流)：2A

Contact Resistance(接触电阻):Max 10mΩ

Dielectric strength(耐压值): min 1000V RMS
